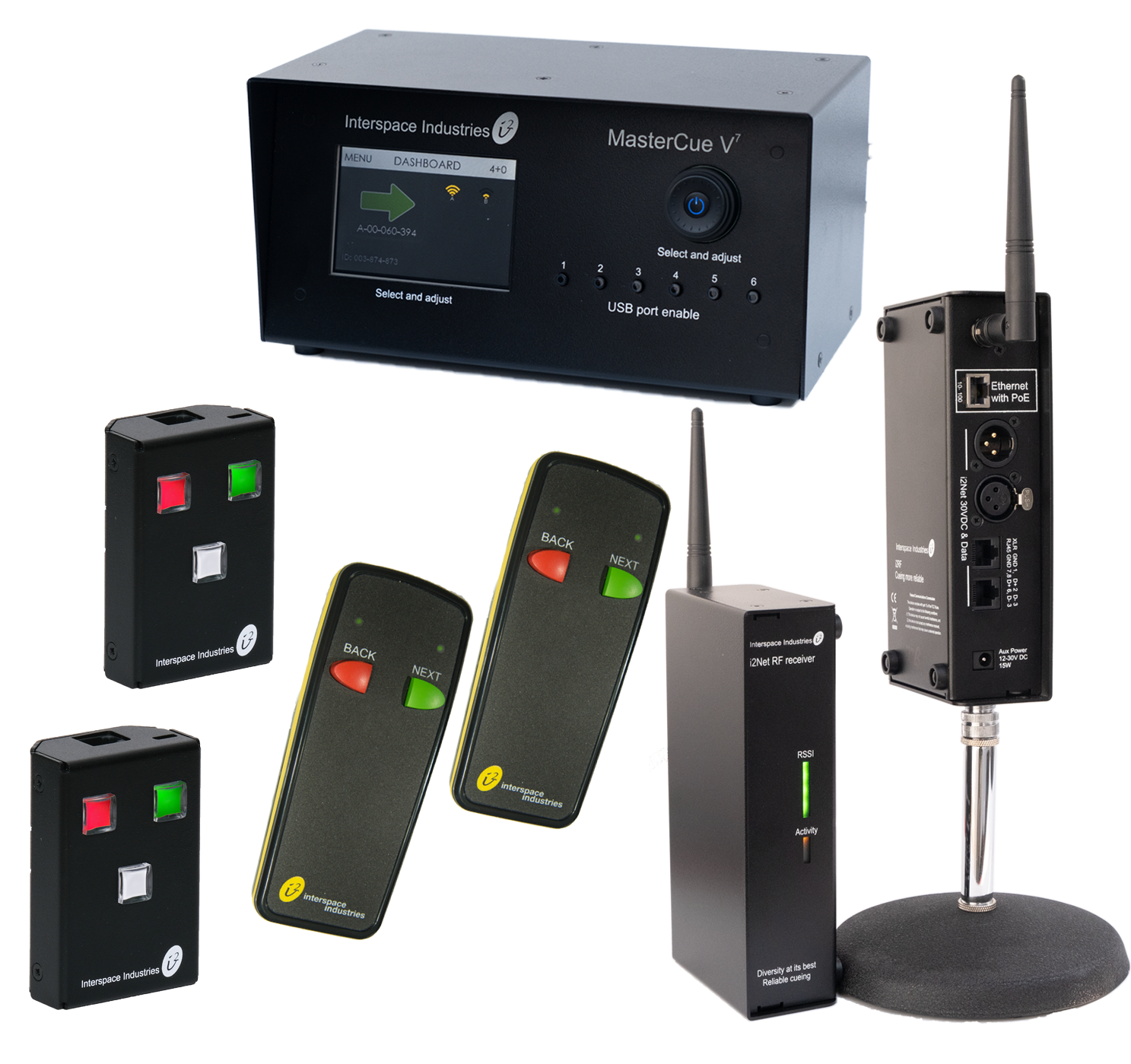

MasterCueV7 System

£2,880.00
VAT included

Our flagship product for event cueing, where full control of all connected devices is required. Ethernet allows for a controlled infrastructure between devices and the connected world of the control room

SKU: MCV7

Description

Our flagship product for event cueing, where full control of all connected devices is required. Ethernet allows for a controlled infrastructure between devices and the connected world of the control room including Companion and its Streamdeck.

Web page for remote access and control of settings. With 6 USB ports to control the graphics machines you can have main, back-up, slides and video machines multiple systems on the same LAN with individual set up and control.

Our proven i2Net for multidrop and cable range (1 mile / 1500m) provides a simple connectivity solution for MCV7 system and the i2Net devices.

Following on and improving from the MasterCue legacy.

  • Remote RF receivers (x2 for diversity)
  • i2LP lamp, for confidence to the user all is working
  • i2WB Wired button, you would not use wireless mics without a wired back up.
  • Comms 4 pin and 5 pin on hum free connections.

3 Year Limited Factory Warranty

More production information can be found here

Specifications

Power

Universal mains in 100V to 264VAC 30W

Line out power on i2Net 28V 20W

Signals

USB, i2Net, Ethernet, PoE Ethernet

Dimensions D x W x Hmm (inch)

Main unit (controller): 110 (4” 5/16) x 225 (8” 7/8) x 115 (4” 1/2), 964g (34oz)

RF receiver 95 (3” 2/4) x 55 (2” 1/8) x 190 (7 1/2”), 395g (13 7/8oz)

i2Net Lamp (i2LP) 60 (2” 3/8) x 102 (4” 1/16) x 70 (2” 3/4), 168g (6oz)

i2Net Wired button 35 (1” 3/8) x 50 (2” 3/16) x 85 (3” 3/8), 114g (4oz)

Weight each

Accessories Included with the MCV7

4 and 5 pin comms cables, Wired button, Confidence lamp, 6 USB cables, Mains cable

Note: you will need your own intercom system fully installed. Note XLR cables are not included as standard.

MasterCue V7 MasterCue V7 has been in design for many years. It has been designed to work with Ethernet systems and it is a requirement of sale that the user / technician understands Ethernet practises. If you do not need Ethernet then look at the MicroCue3 as the V7 will provide a layer of technology you may not need.
